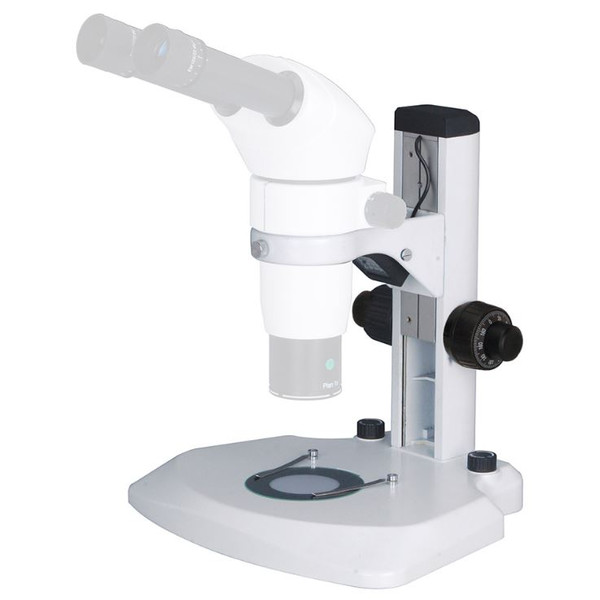

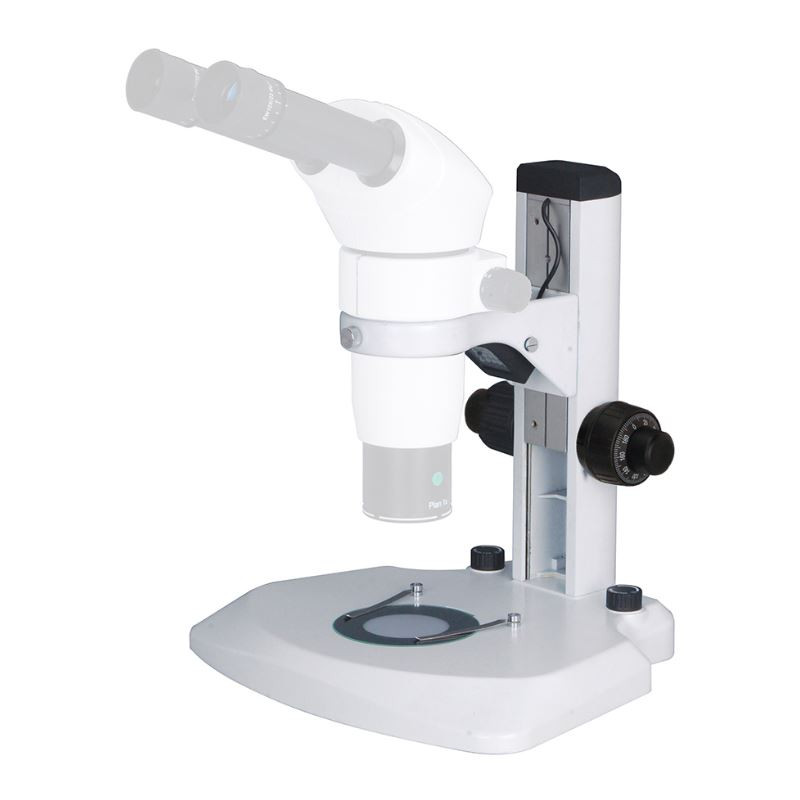

Stand for Modular Stereomicroscopes ST-156
Illumination
- White LED incident and transmitted illumination system, with independent intensity controls using knobs at both sides of the base.
- LED power 3W, comparable to an halogen bulb 30W.
- Color temperature: 6300K
- LED average life time approx. 50000h.
- Voltage: 110/240Vac, 50/60Hz, 0,45 A; Fusibile: T2A 250V
- Max. power required: 7W.
Focusing
- By means of a rack and pinion controlled by a pair of knobs placed on both sides of the head holder.
- Coaxial coarse and fine focus (graduated 0,002 mm).
- The tension of focusing can be adjusted.
- The head holder can slide along the fixed arm.
Dimensions
- Base: 330 x 285 mm.
- Fixed arm: height 305
