USB Cameras – PRO Series
Cameras have become indispensable nowadays and OPTIKA is offering a line of remarkable solutions for digital imaging for the most demanding users and professional use. OPTIKA PRO Series includes a wide range, to virtually fulfill each application demand: from routine up to high-end cooled monochrome or color cameras, with CMOS or CCD sensors. Top-class SONY sensors, worldwide recognized, ensure you to capture your specimen in beautiful true-to-life color, delivering incredibly accurate colors just as you see them. For special applications, and requiring different observation methods, high sensor size cameras are preferred for the high sensitivity delivering high signal-to-noise ratio (low noise is achieved via cooling) and a large dynamic range. OPTIKA Pro Cooled cameras provide an excellent sensitivity: Peltier-cooled (cooling to 45°C below ambient), with scientific-grade CMOS sensor, they ensure great performance in low light conditions, ultra-long exposure time and an impressive reliable color fidelity. All the main operating systems like Windows, IOS, Linux are supported. Do not hesitate to ask us for customized cameras in case you need something tailored on you!
CAPTURE YOUR SPECIMEN IN BEAUTIFUL TRUE-TO-LIFE COLOR, DELIVERING INCREDIBLY ACCURATE COLORS JUST AS YOU SEE THEM
OPTIKA PRO cameras are provided with professional sensors and engineered to capture all the vivid colors and great contrast for stunning images. The incredible capabilities of OPTIKA software suites, designed to exceed the expectations of experienced and professional users, give the chance to use advanced functions like white/black balancing, multi-channel fluorescence, pixel shift, HDR, EDF, stitching & tiling, measurements and customized report generator.
PROFESSIONAL CAMERAS WITH HIGH SENSITIVITY, LOW NOISE AND IMPRESSIVE CAPABILITIES IN SPECIAL APPLICATIONS (ON DIFFERENT OBSERVATION METHODS)
When operating in critical conditions, especially related to low light conditions, cameras with high sensor size, high sensitivity and a large dynamic range are necessary to get good results. Some of the PRO cameras from OPTIKA come with all these features, providing you with the choice of the traditional CCD sensor or the latest technology, scientific-grade CMOS sensor. In case you are looking for the highest performance and unmatchable quality, a Peltier-cooled camera is what is needed, preferably a monochromatic one.
HIGH-SPEED LIVE VIEW CAMERAS WITH USB3.0 DATA TRANSFER FOR AN INCREDIBLY SMOOTH RESULT ALSO AT THE MAXIMUM RESOLUTION
USB 3.0 is the latest generation of USB technology and delivers several key performance benefits for microscopy. USB 3.0 transfers data up to ten times faster than USB 2.0, resulting in quicker transfer of large image or video files and greater workflow efficiency, being ideal in several fields, from research lab, to industrial applications and educational purposes.
These versatile cameras offer several resolutions, but always ensure a significant speed.

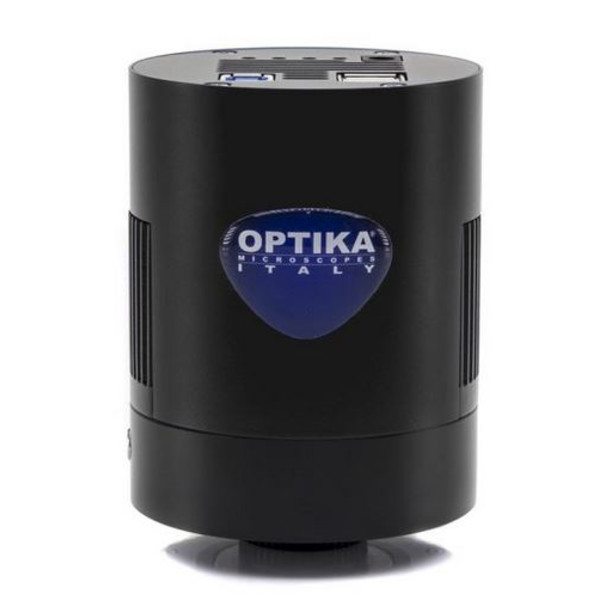

C-P20CC
Type: MICROSCOPE CAMERA “PRO COOLED” SERIES
Description: USB 3.0 C-mount Cooled Color Microscope Camera
CAMERA SPECIFICATION
- Digital camera resolution: 20 MP (5440 x 3648)
- Signal output: USB 3.0
- Sensor Size: 1”
- Sensor technology: CMOS
- Sensor type: SONY EXMOR
- Image format: 4/3
- Pixel size: 2.4 x 2.4 µm
- Frame rate full resolution: 5 fps (5440 x 3648)
- Frame rate other resolutions: 10 fps (4096 x 2160); 15 fps (2736 x 1824); 30 fps (1824 x 1216)
- Sensitivity: 426mV at 1/30sec
- Dark Signal: 0.21mV at 1/30sec
- Cooling: Two-stage TE cooling system -45° below Camera Body Temperature
- ADC conversion: 8 Bit - 14 Bit
- Color Depth: 1 Bit; 4 Bit; 8 Bit; 24 Bit
- Exposure Time: 0.1 msec - 3600 sec
- Binning: 1x1; 2x2; 3x3
- IR filter: 380-650 nm (IR-cut filter)
- Camera power: PC USB
- C-mount: YES
ACCESSORIES
- Calibration Slide
- 1.8 m USB cable
- power supply for cooling system
ENVIRONMENT SPECIFICATION
- Working temperature: -10 up to +50°C
- Storage temperature: -20 up to +60°C
- Relative Humidity: 30% to 80%
- Storage Humidity: 10% to 60%
- Dimensions: diam. 100 x 100 mm
- Weight: 0.590 Kg
SYSTEM REQUIREMENTS
- Operating System Win XP / Win Vista / Win 7 / Win 8 / Win 10 (32 o 64 bit) OSx (Mac OSx) Linux
- PC Requirements CPU: Equal to Intel Core2 2.8GHz or higher RAM: 2 GB or more
- USB port: USB 3.0
- Monitor: 17” or more
- CD-ROM
