Microscope BA310E trino, infinity, EC-plan, achro, 40x - 400x, Hal. 30W

Name: Microscope Motic BA310E trino, infinity, EC-plan, achro, 40x - 400x, Hal. 30W
Brand: Motic
Price: 1910 USD

1.910,00 $ TVA incluse, plus frais d'expédition

Trop cher ?

à court terme
expédié sous 1-2 semaines + durée de transport

Livraison avant Noël,
lorsque vous commandez avant 04.12. !
Retour possible jusqu'au 31.1.2025

Ajouter au panier

Questions sur un article?

Conseil pour Microscopie

Description du produit

Malheureusement, la description de l'article n'a pas encore été traduite en français, c'est pourquoi vous trouverez à la place une description en anglais.

BA310E Trinocular

Optical system Colour Corrected Infinity Optical System (CCIS®)
Observation tube Trinocular head, Siedentopf type, 360º swiveling
Trinocular light split 100:0/20:80 (optional 100:0/0:100)

Interpupillary distance 48-75mm
Diopter adjustment On both eyepieces, +/- 5 diopter
Eyepieces Widefield N-WF10X/20mm with diopter adjustment
Nosepiece Reversed quintuple
Objective classification CCIS® EC Plan Achromatic, DIN
Objectives

-4X/0.10 WD 15.9mm

-10X/0.25 WD 17.4mm

-40X/0.65/S WD 0.5mm

Objective mounting thread W 4/5"x1/36" (RMS standard)
Stand type Upright

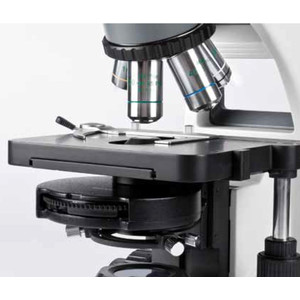

Stage Mechanical stage with built-in low position rackless coaxial stage control with tension adjustment and sample holder
Stage size 180x170mm
Travel range X&Y 80x55mm
Condenser Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
Diaphragm Iris diaphragm
Focus mechanism Coaxial coarse and fine focusing system with tension adjustment
Fine focus precision 2µm
Focusing stroke 20mm
Upper limit stop Upper limit stop preset but adjustable
Filter holder On top of the illuminator with fixing cap
Transmitted illumination Koehler Quartz halogen 6V/30W with intensity control
Illumination interchangeability Quartz halogen 6V/30W or LED 3W
Transformer Internal
Power supply 100-240V (CE)
Accessories included
